Diesel Generator Foundation + Anchorage — Equipment support
A reinforced concrete equipment pad and post-installed anchorage system for a sound-attenuated diesel generator. The design links equipment loads, seismic demand, anchor capacity, pad stability, soil bearing, and installation tolerances in one coordinated package.
- Scope
- Equipment Foundation + Anchorage
- Jurisdiction
- United States
- Codes
- IBC 2022 · ASCE 7-16 · ACI 318-19
- Deliverables
- Detail Sheet + Design Report
Project phases & sheets
Click any drawing to view it full screen
Phase 01Full screen ⤢Define the governing demand
The design criteria establish equipment importance, seismic parameters, operating loads, load transfer, material strengths, and the combinations used for foundation and anchor checks.

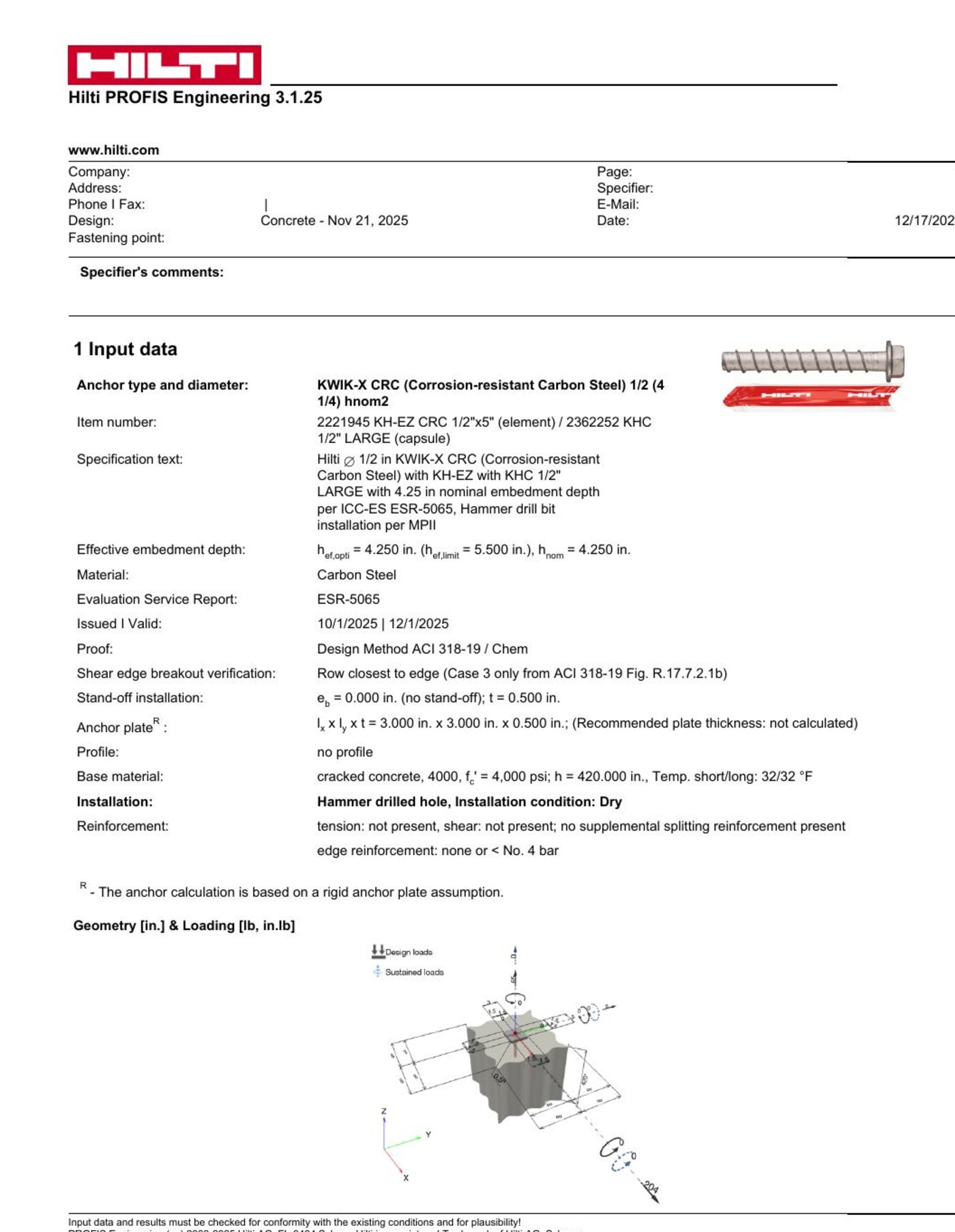

Phase 02Full screen ⤢Engineer the anchors
Post-installed anchors were checked for tension, shear, interaction, concrete breakout, edge effects, embedment, and installation conditions using product-specific design data.

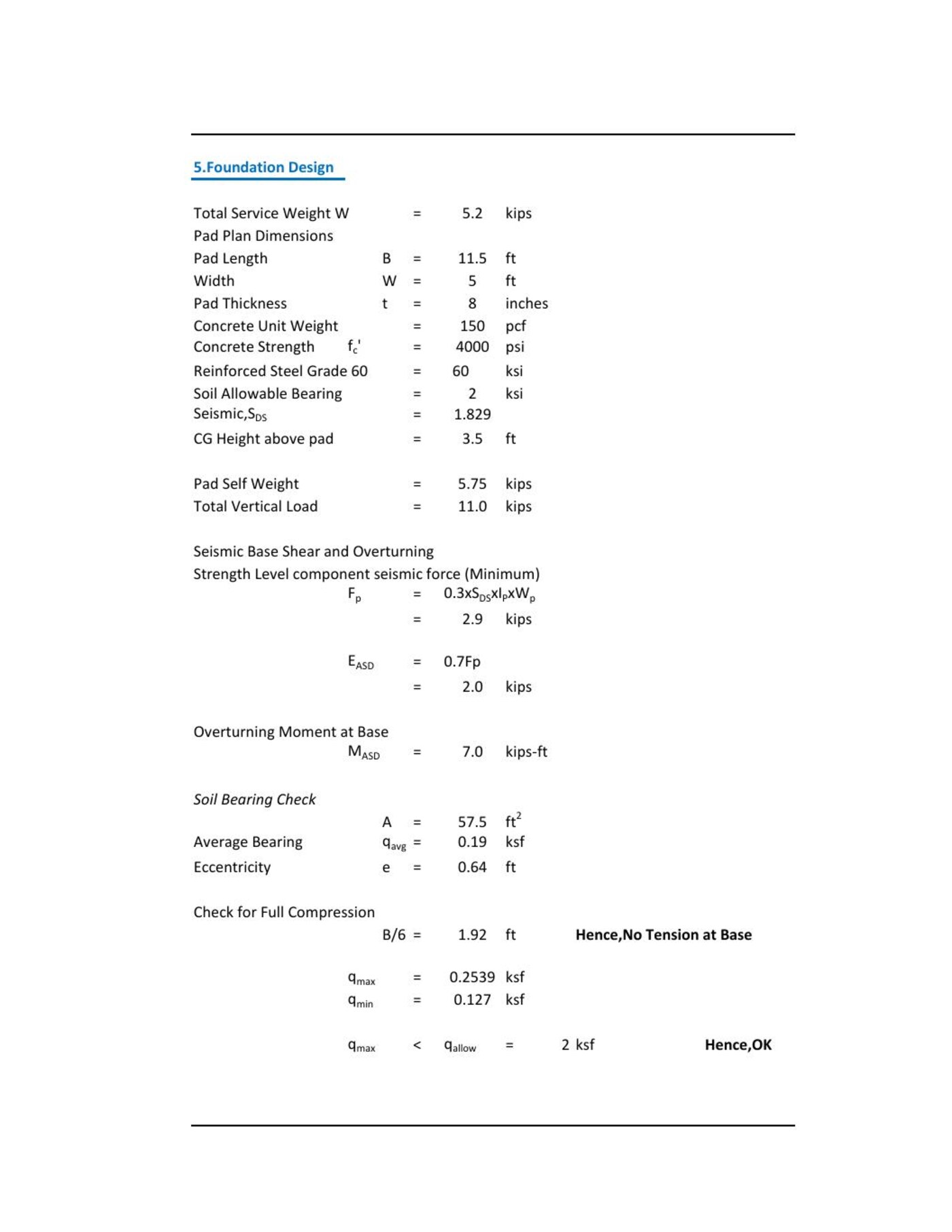

Phase 03Full screen ⤢Verify pad stability
The reinforced pad was checked for soil bearing, sliding, overturning, full compression, and reinforcement under equipment weight and lateral seismic action.

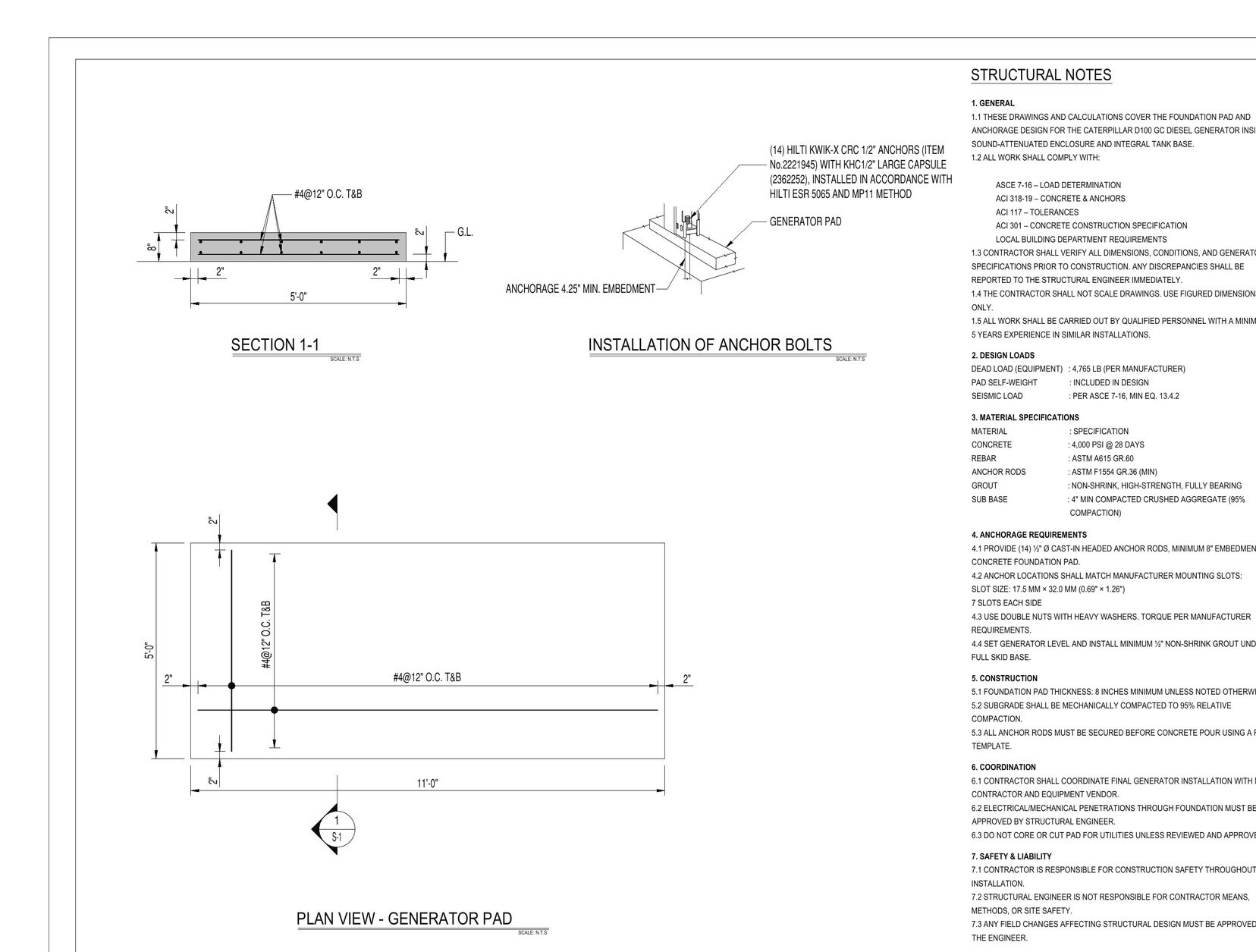

Phase 04Full screen ⤢Coordinate installation
The final structural sheet gives the pad dimensions, reinforcement, clear cover, anchor pattern, minimum embedment, grout, subbase, and construction notes needed for installation.
